In the entire field of mechanical power transmission systems, the stable connection between driving equipment and driven equipment is the basic premise to ensure the continuous and efficient operation of all mechanical equipment. Every link in the power transmission chain needs reliable connecting components to realize the stable output and transfer of rotational torque, and curved jaw coupling has always occupied an indispensable and core position in general industrial power transmission scenarios relying on its unique structural design, excellent deformation compensation performance and stable vibration buffering capacity. As a typical torsionally flexible elastomer coupling type, it differs significantly from traditional rigid connecting parts and other ordinary flexible coupling structures in mechanical design and actual operation logic, and can well adapt to various non-ideal installation states and complex working condition fluctuations that are inevitably present in actual industrial production and mechanical operation processes. In the actual assembly and operation of mechanical equipment, it is almost impossible to achieve absolute coaxial alignment between the driving shaft and the driven shaft due to objective factors such as mechanical assembly errors, structural deformation of equipment frames under long-term load, thermal expansion and contraction of metal components during continuous operation, and slight foundation settlement of equipment installation positions. These subtle deviations in shaft alignment will generate additional radial force, axial tension and angular shear force on the connecting parts of the transmission system during the operation of the equipment. If these additional forces cannot be effectively buffered and compensated, they will directly act on the bearings, shafts and core transmission components of the driving and driven equipment, causing accelerated wear of parts, increased operating noise, obvious vibration of the whole machine, and even early fatigue damage and failure of key mechanical structures in severe cases, which will affect the normal service cycle of the equipment and lead to frequent production shutdown and maintenance work. The emergence and wide application of curved jaw coupling fundamentally solve this common pain point in mechanical power transmission. It relies on the ingenious cooperation between metal hub components and elastic intermediate elements to not only complete the basic torque transmission work required for mechanical operation, but also effectively absorb the vibration and impact generated during equipment start-stop, load fluctuation and variable speed operation, and reasonably compensate for various shaft misalignments generated during installation and long-term operation, ensuring that the power transmission system can maintain a smooth and stable operating state for a long time under various complex working environments and operating conditions.

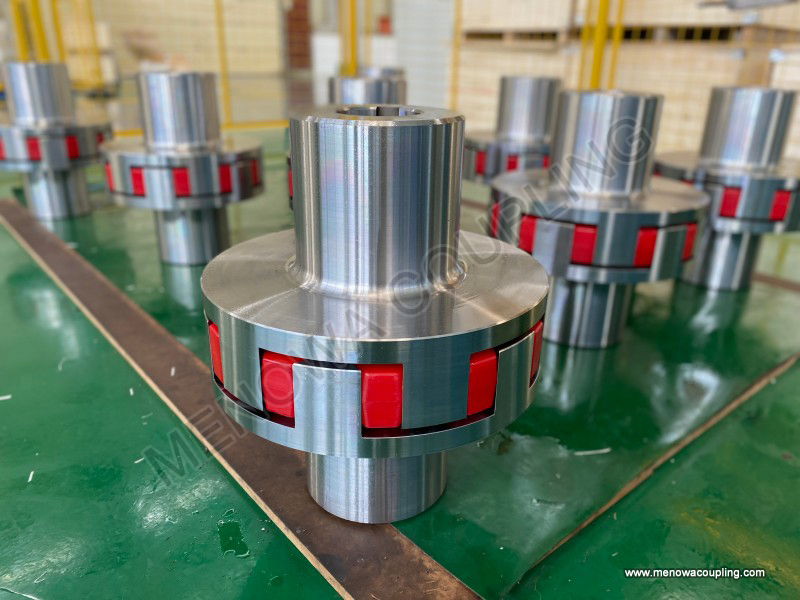

The basic structural composition of curved jaw coupling follows a simple and practical mechanical design concept, and the whole set of connecting structure is composed of two independent metal hub bodies with special curved jaw profiles and a single-piece plum-blossom-shaped elastomer flexible intermediate component installed between the two hubs. There is no complex multi-stage transmission structure, no additional auxiliary transmission parts, and no need for complicated fastening and transmission accessories in the overall design, which lays a solid foundation for its convenient installation, simple daily maintenance and stable long-term operation. The core difference between curved jaw coupling and ordinary straight jaw coupling lies in the profile design of the jaw parts on the metal hubs. The jaw structure of straight jaw coupling adopts a linear and flat design, and the contact area between the jaw and the intermediate elastomer is relatively limited during torque transmission, which makes the local stress concentration obvious and the compensation range for shaft misalignment relatively narrow. In contrast, the jaw part of curved jaw coupling adopts a smooth curved arc profile design. This optimized curved structure can effectively expand the contact area between the metal jaw and the elastomer insert during the torque transmission process, disperse the local pressure generated by torque extrusion on the contact surface, avoid excessive stress concentration at the edge of the contact part, and reduce the wear degree of both the metal jaw and the elastic intermediate element in the long-term compression and deformation cycle process. The two metal hubs are respectively installed and fixed on the driving shaft and the driven shaft of the mechanical equipment through standard shaft hole matching and conventional fastening methods. The curved jaws on each hub are arranged in a uniform circumferential distribution state, and the plum-blossom-shaped elastomer is embedded in the gap between the staggered jaws of the two hubs, forming a compact and integrated connecting whole after assembly. In the process of equipment operation and torque transmission, there is no direct metal-to-metal contact between the two metal hubs of the curved jaw coupling. All torque transmission processes are completed through the elastic compression deformation of the intermediate elastomer, and all vibration, impact and misalignment displacement generated during operation are also buffered and compensated by the deformation space of the elastomer and the reserved matching gap between the curved jaws and the elastomer. This non-direct metal contact working mode not only effectively reduces the mechanical friction and wear between metal parts, but also avoids the generation of harsh mechanical noise caused by metal collision and friction during equipment operation, creating a low-noise and stable operating environment for the entire mechanical transmission system.

The selection of manufacturing materials for each component of curved jaw coupling directly determines its mechanical performance, load-bearing capacity, deformation compensation effect and long-term service life in different working conditions, and the material matching of metal hubs and intermediate elastomers has formed a mature and scientific matching system after long-term industrial practice and mechanical performance verification. For the metal hub part that plays the role of fixed installation and torque transmission support, multiple types of metal materials can be selected according to different load levels, operating environment requirements and equipment use scenarios. Common hub manufacturing materials include cast iron, nodular cast iron, sintered iron, aluminum alloy and high-strength steel materials. Different metal materials have their own unique mechanical characteristics and applicable working condition ranges. Cast iron materials have good casting performance, stable structural rigidity and low manufacturing cost, and are suitable for general light-load and medium-load conventional power transmission scenarios with stable operating load and low impact frequency, which can meet the basic torque transmission and structural support requirements of conventional mechanical equipment. Nodular cast iron has better toughness, impact resistance and fatigue resistance than ordinary cast iron, and can adapt to medium and heavy-load working conditions with frequent load fluctuation and occasional impact load, effectively avoiding structural cracking and deformation of hubs under alternating load for a long time. Sintered iron hubs have good wear resistance and dimensional stability, and are suitable for working scenarios with high operating frequency and long-term continuous operation, maintaining stable matching accuracy between hubs and shafts for a long time. Aluminum alloy hubs are characterized by light weight, low moment of inertia and good thermal conductivity. They are very suitable for high-speed operation equipment and precision transmission mechanical systems that require sensitive start-stop response and low rotating inertia, which can effectively reduce the additional rotational load of the transmission system and improve the response sensitivity of equipment speed regulation and start-stop actions. High-strength steel materials have excellent structural strength, high torque bearing capacity and strong impact resistance, and are mainly used for heavy-load, high-torque and harsh working condition transmission scenarios, ensuring that the hubs will not deform or damage under long-term high-load operation and extreme impact conditions.

The intermediate plum-blossom-shaped elastomer is the core functional component of curved jaw coupling to realize vibration damping, impact buffering and misalignment compensation, and its material performance directly determines the key comprehensive performance of the coupling. The mainstream materials for manufacturing elastomers include high-quality rubber, engineering plastics and high-strength wear-resistant polyurethane materials, and different elastomer materials have different hardness grades and elastic deformation characteristics to meet the differentiated needs of various working conditions. Rubber elastomers have good soft elasticity and excellent vibration absorption performance, with strong buffering effect on frequent small vibration and slight impact generated during equipment operation, suitable for mechanical systems that require high operating stability and low vibration noise. Engineering plastic elastomers have good wear resistance, aging resistance and corrosion resistance, and can maintain stable elastic performance in working environments with high temperature, humidity or slight corrosive medium, with long service life and low replacement frequency. High-strength polyurethane elastomers combine the advantages of high elasticity, high wear resistance and high compression resistance, can withstand frequent compression deformation and large torque extrusion, have strong bearing capacity for impact load and alternating load, and are suitable for medium and heavy-load working conditions with harsh operating environment and complex load changes. All elastomer materials can produce reversible elastic deformation within a certain range under the action of external force. When the driving hub rotates and transmits torque, the curved jaws on the driving hub squeeze the elastomer, and the elastomer transfers the torque to the curved jaws of the driven hub through compression deformation, driving the driven shaft to rotate synchronously. When the shaft has misalignment displacement or the equipment generates vibration and impact, the elastomer absorbs displacement and impact energy through its own elastic deformation, avoiding the direct transmission of additional stress and vibration to the equipment shaft and bearings, and protecting the core mechanical components of the equipment from damage. In addition, the hardness of the elastomer can be adjusted according to actual working condition requirements. Soft elastomers have better vibration damping and buffering effects and larger misalignment compensation range, while hard elastomers have higher torque transmission efficiency and smaller torsional deformation, meeting the balance needs of different equipment for transmission accuracy and vibration damping performance.

The working mechanism of curved jaw coupling is based on the elastic deformation principle of flexible materials and the structural coordination design of curved contact surfaces, and the whole torque transmission and misalignment compensation process is efficient, stable and highly adaptable. In the normal steady-state operation stage of mechanical equipment, the driving shaft drives the driving metal hub to rotate at a constant speed, and the curved jaws arranged circumferentially on the driving hub continuously and uniformly squeeze the intermediate plum-blossom elastomer. Relying on the friction force and compression force generated by the contact between the curved jaws and the elastomer, the torque is stably transmitted from the driving hub to the elastomer, and then the torque is transmitted to the driven metal hub through the elastomer, finally realizing the synchronous rotation of the driven shaft and completing the basic power transmission function required by mechanical operation. The smooth curved contact profile between the jaws and the elastomer ensures that the stress on each contact part is evenly distributed during the torque transmission process, there is no sudden change in stress and local overpressure, the torque transmission process is smooth without obvious fluctuation, and the rotation speed synchronization between the driving shaft and the driven shaft is maintained well. When the equipment is started and stopped frequently or the operating load changes suddenly, the instantaneous impact force generated by load fluctuation will act on the coupling. At this time, the intermediate elastomer will produce instantaneous compression and rebound deformation under the action of impact force, absorb most of the impact energy generated by start-stop and load change, avoid the direct action of instantaneous impact torque on the equipment shaft and transmission components, make the equipment start and stop more gently, and reduce the mechanical impact and vibration of the whole machine during load switching.

For the various shaft misalignments that are inevitable in actual equipment operation, including angular misalignment, radial misalignment and axial misalignment, curved jaw coupling has good comprehensive compensation capability. Angular misalignment refers to the angle deviation between the central axis of the driving shaft and the driven shaft after installation and operation, which is caused by assembly errors and equipment structural deformation. The curved jaw structure and the elastic deformation space of the intermediate elastomer of the coupling can well adapt to this angle deviation, and the elastomer can produce corresponding flexible deformation according to the angle change without generating additional bending stress on the shaft. Radial misalignment is the radial offset between the two shaft centers, and the reserved gap between the curved jaws and the elastomer and the radial deformation capacity of the elastomer can effectively offset this radial offset, avoiding additional radial shear force on the shaft and bearings. Axial misalignment comes from the axial thermal expansion and contraction of the shaft during equipment operation and slight axial displacement caused by mechanical vibration. The elastic compression and rebound allowance of the elastomer in the axial direction can well adapt to this axial displacement, ensuring that the coupling will not be subjected to excessive axial tension or compression and cause structural damage. What makes curved jaw coupling more advantageous than other ordinary flexible couplings is that while realizing effective misalignment compensation, it will not produce excessive torsional deformation affecting transmission stability, maintaining a reasonable balance between misalignment compensation capacity and torque transmission accuracy, which is suitable for most general industrial transmission scenarios that require both certain compensation performance and stable transmission efficiency.

In terms of installation operation and daily later maintenance, curved jaw coupling has outstanding advantages of simple operation, low technical threshold and low maintenance cost, which is one of the important reasons why it is widely used in various industrial production fields. The overall structural design of the coupling is simple and intuitive, with few components and compact matching relationship. The entire installation process can be completed by conventional mechanical assembly personnel without professional and complex assembly tools and professional technical training. Before installation, it is only necessary to check whether the shaft hole size of the two metal hubs matches the diameter of the driving shaft and the driven shaft, and confirm that the surface of the shaft and the inner wall of the hub shaft hole are smooth and free of obvious burrs, rust and sundries, so as to ensure the installation matching accuracy. During installation, the two metal hubs are respectively sleeved on the corresponding driving shaft and driven shaft and fixed by conventional fastening parts to ensure that the hubs and the shafts maintain stable synchronous rotation without relative sliding. After the hubs are fixed, the plum-blossom-shaped elastomer is embedded in the jaw gap between the two hubs, and then the position of the equipment is slightly adjusted to make the two hubs and the elastomer fit closely without excessive extrusion and loose gaps. After the installation is completed, simple manual rotation inspection and no-load test operation can be carried out to check whether the coupling runs smoothly, whether there is abnormal friction and noise, and whether the equipment rotates synchronously normally. The whole installation process is time-saving and labor-saving, and will not consume too much production and assembly time, which is convenient for rapid assembly and put into use of mechanical equipment.

In the daily maintenance and later use stage, curved jaw coupling basically does not need daily lubrication and regular oiling maintenance work, which is fundamentally different from gear couplings and chain couplings that need regular lubrication and oil supplement. The torque transmission and deformation compensation of the coupling are completed by the elastic deformation of the elastomer, and there is no metal friction and meshing wear that need lubrication protection, so it can maintain long-term normal operation without daily maintenance intervention. In the long-term continuous operation process, the main daily inspection work only needs to regularly observe whether the elastomer has obvious aging, cracking, excessive deformation and wear, and check whether the fastening parts of the metal hubs are loose. When the elastomer reaches the service life and appears aging and damage, the replacement operation is also very convenient and fast. It only needs to take out the old damaged elastomer and replace it with a new elastomer of the same specification, without disassembling the metal hubs and the connected equipment, which will not affect the assembly accuracy and normal operation state of the equipment. The low maintenance demand and simple replacement operation greatly reduce the daily maintenance workload and maintenance cost of enterprise mechanical equipment, avoid frequent production shutdown caused by coupling maintenance and replacement, and effectively improve the continuous operation efficiency and production efficiency of industrial production lines. In addition, the structural design of curved jaw coupling has good environmental adaptability, and the metal hubs and elastomer materials used have good resistance to oil pollution, dust, moisture and conventional grease erosion, and can work stably in various harsh industrial working environments such as factory production workshops, outdoor mechanical operation sites and fluid conveying equipment rooms without being affected by conventional environmental pollution and medium erosion.

Curved jaw coupling has extremely wide application coverage in the entire industrial field, and can be well adapted to power transmission matching work of light-load, medium-load and heavy-load various mechanical equipment, covering multiple industry scenarios such as industrial production and manufacturing, fluid conveying mechanical equipment, power generation and power supply equipment, material handling and processing machinery. In the fluid conveying equipment industry, curved jaw coupling is often used to connect motors and pump equipment, various compressors, blowers and fan equipment. Pump equipment needs to maintain stable rotational speed and torque output during long-term continuous operation, and will generate certain vibration and fluid impact during liquid conveying. The vibration damping and buffering performance of curved jaw coupling can effectively absorb the vibration generated by pump operation, compensate for shaft misalignment caused by long-term operation of the pump body and motor, ensure the stable operation of the pump equipment, reduce the failure rate of pump bearings and shaft seals, and extend the service life of pump equipment. Compressors and blowers will generate obvious pressure fluctuation and mechanical vibration during operation, and the flexible connection performance of the coupling can effectively isolate vibration and reduce the impact of load fluctuation on the motor and compressor main body, maintaining the stability of gas compression and conveying work.

In the field of material handling and processing machinery, curved jaw coupling is widely used in various conveyor equipment, mixing and stirring equipment and material processing transmission equipment. Conveyor equipment often has frequent start-stop actions and uneven material load during operation, which is easy to generate instantaneous impact load and vibration. The impact buffering performance of the coupling can make the conveyor start and stop smoothly, avoid material scattering and equipment jitter caused by impact, and ensure the stable and continuous transportation of materials. Mixing and stirring equipment will generate alternating torque and eccentric load during the stirring operation of materials, and the misalignment compensation performance of the coupling can adapt to the slight shaft deviation and alternating load generated during the operation of the mixing shaft and driving motor, ensuring the stable operation of the mixing equipment and uniform mixing of materials. In the field of power generation and power supply supporting equipment, the coupling is used for the connection of generator sets and supporting power transmission equipment, maintaining the stable power output of the generator set, reducing the vibration and impact during power transmission, and ensuring the stable and safe operation of power generation equipment.

In the field of precision mechanical transmission and automation equipment, curved jaw coupling also has applicable application space, especially for mechanical systems with stop-and-go intermittent operation and high requirements for stopping accuracy. Many automation production equipment and machine vision supporting mechanical equipment need to accurately stop and position after short-distance operation to complete precision processing, detection and shooting work. The vibration absorption performance of curved jaw coupling can reduce the settling time required for the equipment to stop stably after stopping operation, quickly stabilize the operating state of the equipment, improve the working rhythm and production throughput of precision operation, and ensure the positioning accuracy and operation stability of precision mechanical equipment. Although it is not suitable for high-precision continuous scanning motion scenarios that require extremely high transmission accuracy during operation, it can fully meet the operation needs of most intermittent precision operation and conventional general transmission equipment with its balanced comprehensive performance.

Compared with other common types of mechanical couplings in the market, curved jaw coupling shows obvious comprehensive performance advantages in the balance of structural simplicity, functional performance and application economy. Rigid couplings have high transmission accuracy but no misalignment compensation and vibration damping capacity at all, and have high requirements for equipment installation accuracy. Once there is slight shaft misalignment, it will cause serious equipment wear and failure, and the applicability in actual complex working conditions is poor. Ordinary straight jaw couplings have simple structure but small contact area between jaws and elastomer, obvious local stress concentration, small misalignment compensation range and poor vibration damping effect, and are only suitable for very simple light-load and low-vibration working conditions. Gear couplings have high torque bearing capacity but complex structure, need regular lubrication and maintenance, high installation and maintenance costs, large operating noise, and poor vibration damping and buffering performance. Elastic sleeve pin couplings have certain vibration damping capacity but low torque transmission efficiency, poor wear resistance and short service life, and are easy to damage under long-term alternating load. In contrast, curved jaw coupling integrates simple structure, convenient installation, low maintenance cost, good misalignment compensation performance, excellent vibration damping and impact buffering capacity and moderate torque bearing capacity, and has very high cost performance and comprehensive applicability. It neither has the high installation and maintenance cost of complex high-performance couplings nor the poor adaptability and short service life of simple ordinary couplings, and can well meet the diverse power transmission needs of most industrial enterprises in actual production and mechanical equipment operation.

In the long-term actual industrial operation practice, the service life and operating effect of curved jaw coupling are affected by several key use and selection factors, and reasonable type selection and standardized use can give full play to its comprehensive performance advantages and extend its effective service life. First of all, the matching selection of elastomer hardness and material should be carried out according to the actual load size, vibration frequency and operating environment of the equipment. For light-load and high-vibration precision operation scenarios, soft elastomer materials with good vibration damping performance should be selected; for heavy-load and high-torque working conditions, high-strength hard elastomer materials with strong compression resistance and torque bearing capacity should be selected. Secondly, the installation and alignment work should be done well during equipment assembly. Although the coupling has good misalignment compensation capacity, excessive artificial installation deviation will still increase the long-term deformation and wear of the elastomer, accelerate the aging and damage of vulnerable parts, and reduce the overall service life of the coupling. In addition, in the daily operation process, avoid the equipment being in frequent overload operation and long-term extreme impact load state for a long time. Although the coupling has impact buffering performance, long-term overload operation will exceed the elastic deformation limit of the elastomer, causing permanent deformation and structural damage of the elastomer and affecting the normal transmission function. Regular simple inspection and timely replacement of aging and damaged elastomers are also key links to ensure the long-term stable operation of the coupling. Timely replacement of vulnerable parts can avoid the problem of increased equipment vibration and unstable torque transmission caused by elastomer failure, and ensure the continuous and efficient operation of the entire mechanical power transmission system.

With the continuous development and upgrading of modern industrial production technology and mechanical equipment manufacturing level, the requirements for the stability, reliability and low maintenance of mechanical power transmission systems are constantly improving, and curved jaw coupling, as a mature and reliable general-purpose flexible transmission connecting component, will still maintain a wide range of application value and market demand in the future industrial field. Its unique curved jaw structural design, reasonable elastic deformation working mechanism, diverse material selection matching and simple and convenient installation and maintenance characteristics make it always adapt to the changing general industrial power transmission needs. Whether it is conventional light and medium-load general mechanical transmission or medium and heavy-load industrial production equipment operation, whether it is continuous long-term stable operation scenarios or intermittent start-stop precision operation working conditions, curved jaw coupling can provide stable and reliable power transmission connection protection for mechanical equipment. By continuously optimizing the material formula of elastomers and the structural process design of metal hubs, the comprehensive performance of curved jaw coupling in high temperature resistance, corrosion resistance, wear resistance and high load bearing will be further improved, and its applicable working condition range and industrial application fields will be further expanded. In the entire mechanical power transmission industry, curved jaw coupling will always be a basic and core connecting component that cannot be replaced by ordinary products, providing solid and reliable basic guarantee for the stable operation and efficient production of various industrial mechanical equipment.
