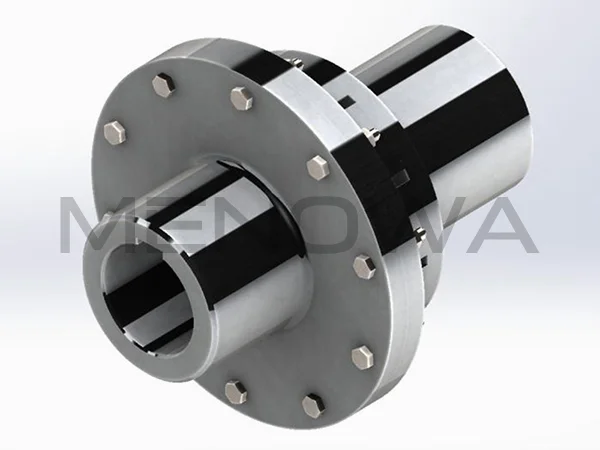

LMD Plum Blossom Coupling

Menowa is a lmd plum blossom coupling supplier from china, wholesale and direct sales lmd plum blossom coupling at a reasonable price.

LMD plum blossom coupling carries the gentle and profound charm of traditional oriental aesthetics, weaving the elegant spirit of winter blossoms into a warm and harmonious artistic conception. Plum blossoms bloom quietly amid the chilly breeze and faint frost, standing firm in the quiet cold while releasing a soft and refreshing fragrance that drifts gently through the surroundings. This natural matching of flower and artistic conception embodies the harmonious unity of toughness and tenderness, blending subtle beauty and steady inner temperament perfectly. Every delicate petal and every subtle texture echoes the quiet warmth of sincere connection, inheriting the timeless artistic conception that has been cherished in traditional culture for years. It presents a simple and elegant vibe, letting the quiet charm of plum blossoms and the beauty of harmonious companionship blend naturally in every subtle and touching detail around us.

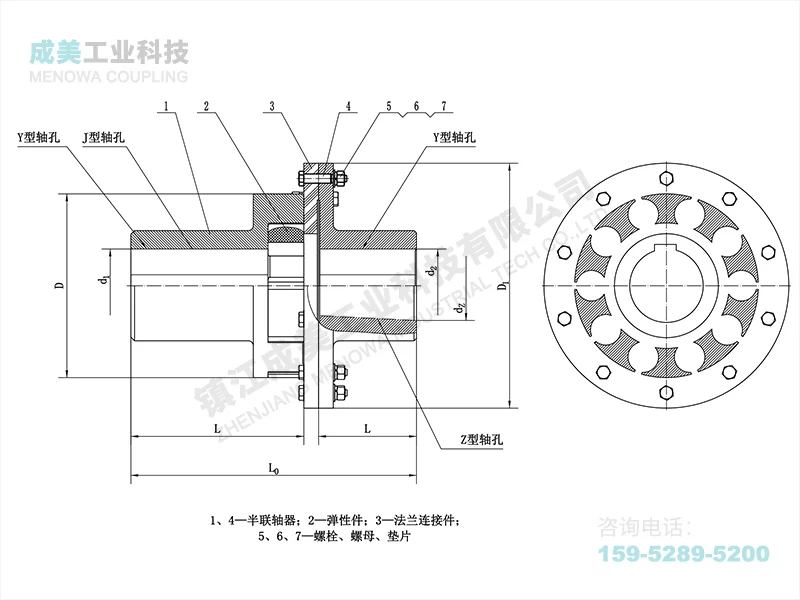

Model	Old Model	Nominal Torque N.m		Allowable Rotating Speed	Shaft Hole Diameter	L	Lo	D	Dl	Elastic Parts	Weight	Rotational Inertia
		Hardness of Elastic Parts
		a/Ha	b/Hb
		80+5	60+5	[n]r/min	d₁、d₂、d_z					Model	kg	kg.m²
LMD1	MLZ1	25	45	8500	12,14,16,18,19,20,22,24 25	35	92	50	90	MT1	1.206	0.00082
LMD2	无	50	100	7600	16,18,19,20,22,24,25,28,30	38	101.5	60	100	MT2	1.648	0.0014
LMD3	MLZ2	100	200	6900	20,22,24,25,28,30,32	40	110	70	110	MT3	2.357	0.0024
LMD4	MLZ3	140	280	6200	22,24,25,28,30,32,35,38,40	45	122	85	125	MT4	3.556	0.005
LMD5	MLZ4	350	400	5000	25,28,30,32,35,38,40,42,45	50	138.5	105	150	MT5	6.361	0.0135
LMD6	MLZ5	400	710	4100	30,32,35,38,40,42,45,48	55	155	125	185	MT6	10.768	0.0329
LMD7	MLZ6	630	1120	3700	35,38,40,42,45,48,50,55	60	172	145	205	MT7	15.302	0.0581
LMD8	MLZ7	1120	2240	3100	45,48,50,55,56,60,63,65	70	195	170	240	MT8	22.717	0.1175
LMD9	MLZ8	1800	3550	2800	50,55,56*,60,63,65,70,71,75,80	80	224	200	270	MT9	34.439	0.233
LMD10	MLZ9	2800	5600	2500	60,63,65,70,71,75,80,85,90,95,100	90	248	230	305	MT10	51.358	0.459
LMD11	MLZ10	4500	9000	2200	70,71,75,80,85,90,95,100,110,120	100	284	260	350	MT11	81.302	0.977
LMD12	MLZ11	6300	12500	1900	80,85,90,95,100,110,120,125,130	115	321	300	400	MT12	115.53	1.751
LMD13	MLZ12	11200	20000	1600	90,95,100,110,120,125,130,150,160	125	348	360	460	MT13	161.79	3.366
LMD14	MLZ13	12500	25000	1500	100,110,120,125,130*,140,150,160	135	358	400	500	MT14	196.3	4.867
