LMZ-II Plum Blossom Coupling

Menowa is a lmz-ii plum blossom coupling supplier from china, wholesale and direct sales lmz-ii plum blossom coupling at a reasonable price.

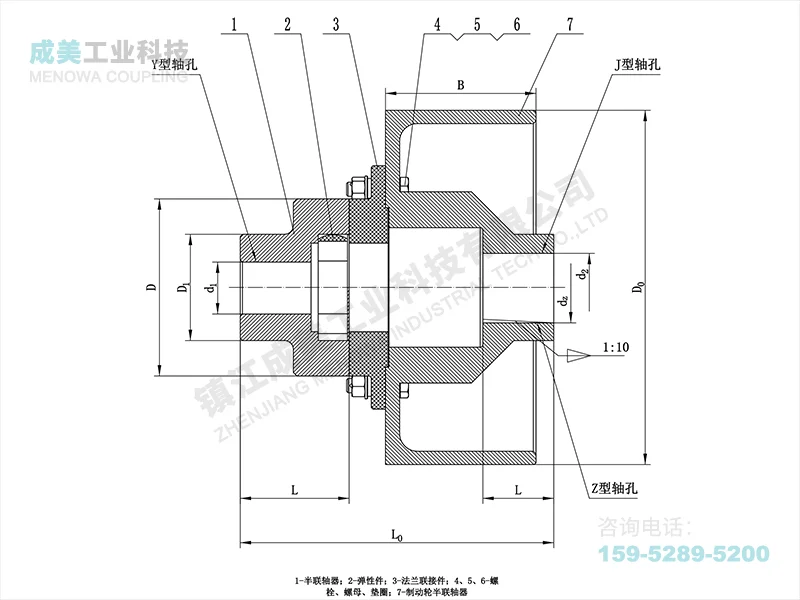

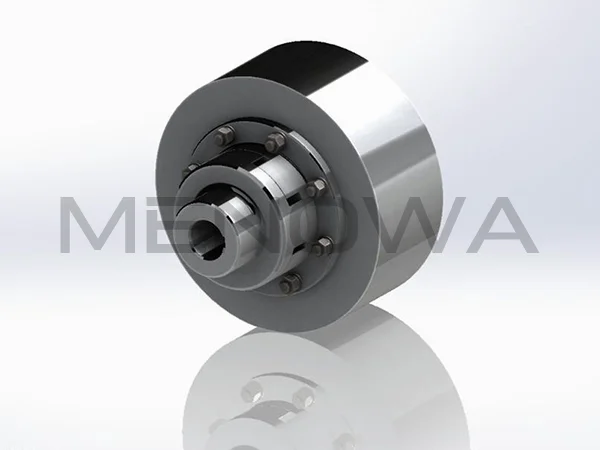

LMZ-II plum blossom coupling features a well-structured integrated design with a matched brake wheel structure, perfectly catering to mechanical working scenarios needing stable braking and steady torque transmission. It consists of two claw-equipped half coupling parts and a flexible plum-shaped elastic component in the middle, which relies on elastic compression to transfer power between connected mechanical shafts. The flexible core part can effectively buffer operating vibration and reduce mechanical impact during equipment start and stop processes. It also delivers reliable compensation for axial, radial and angular displacement generated during long-term mechanical operation. With a compact overall layout and lightweight structure, it brings small moment of inertia for smooth high and medium speed operation. The whole structure requires no regular lubrication, featuring simple daily upkeep and stable long-term running performance, widely suited for various general industrial mechanical transmission supporting work.

Model	Allowable Rotating Torque MP/(N·m)			Allowable Rotating Speed mp (r·min)	Shaft Hole Diameter	Shaft Hole Length		L₀ mm	D₀ mm	B mm	D mm	D₁ mm	d₀ mm	h mm	Rotational Inertia kg·m²	Quality kg
	Hardness of Elastic Parts HA				d₁/mm, d₂/mm, d₃/mm	Y型	J、Z型
	≥75	≥85	≥94		d₁/mm, d₂/mm, d₃/mm	L	L₁
LMZ4-II-160	140	250	400	4750	25,28	62	44	190.5	160	70	105	72	10	20	2.56	10
					30,32,35,38	82	62	210.5
					40,42	112	84	265.5
LMZ4-II-200	140	250	400	3800	25,28	62	44	215.5	200	85	105	72	10	20	5.6	14
					30,32,35,38	82	60	235.5
					40,42	112	84	265.5
LMZ5-II-200	250	400	800	3800	30,32,35,38	82	60	242	200	85	125	90	122	25	6.6	16.5
LMZ5-II-200	250	400	800	3800	40,42,45,48	112	84	272	200	85	125	90	122	25	6.6	16.5
LMZ6-II-200	400	630	1200	3800	35,38	82	66	249	200	85	145	104	140	30	8.12	20.3
LMZ6-II-200	400	630	1200	3800	40,42,45,48,50,55	112	84	279	200	85	145	104	140	30	8.12	20.3
LMZ6-II-250	400	630	1200	3050	35,38	82	60	279	250	105	145	104	140	30	16	25.6
LMZ6-II-250	400	630	1200	3050	40,42,45,48,50,55	112	84	309	250	105	145	104	140	30	16	25.6
LMZ7-II-250	710	1120	2240	3050	45,48,50,55	112	84	312	250	105	170	130	166	30	19.6	31.4
LMZ7-II-250	710	1120	2240	3050	60,63,65	142	107	372	250	105	170	130	166	30	19.6	31.4
LMZ7-II-315	710	1120	2240	2400	45,48,50,55	112	84	312	315	135	170	130	166	30	38.2	38.5
LMZ7-II-315	710	1120	2240	2400	60,63,65	142	107	372	315	135	170	130	166	30	38.2	38.5
LMZ8-II-315	1120	1800	3550	2400	50,55	112	84	351	400	170	200	156	196	35	55	55.5
LMZ8-II-315	1120	1800	3550	2400	60,63,65,70,71,75	142	107	416	400	170	200	156	196	35	55	55.5
LMZ8-II-400	1120	1800	3550	1900	50,55	112	84	351	400	170	200	156	196	35	120.5	75.3
LMZ8-II-400	1120	1800	3550	1900	60,63,65,70,71,75	142	107	416	400	170	200	156	196	35	120.5	75.3
LMZ9-II-400	1800	2800	5600	1900	60,63,65,70,71,75	142	107	421	400	170	230	180	225	35	147.5	92.9
LMZ9-II-400	1800	2800	5600	1900	80,85,90,95	172	132	451	400	170	230	180	225	35	147.5	92.9
LMZ9-II-500	1800	2800	1500	1500	60,63,65,70,71,75	142	107	275	500	210	230	180	225	35	345	138
LMZ9-II-500	1800	2800	1500	1500	80,85,90,95	172	132	451	500	210	230	180	225	35	345	138
LMZ10-II-500	2800	4500	9000	1500	70,71,75	142	107	490	500	210	260	205	255	45	450	180
					80,85,90,95	172	132	520
					100,110	212	167	560
LMZ11-II-630	4000	6300	12500	1200	80,85,90,95	172	132	580	630	265	300	245	295	50	992	250
LMZ11-II-630	4000	6300	12500	1200	100,110,120	212	167	620	630	265	300	245	295	50	992	250
LMZ12-II-710	7100	11200	20000	1050	90,95	172	132	630	710	300	360	300	356	55	1462	290
					100,110,120,125	212	167	670
					130	252	202	710
LMZ13-II-800	8000	12500	25000	950	100,110,120,125	212	167	710	800	340	400	335	391	55	2048	320
LMZ13-II-800	8000	12500	25000	950	130,140	252	202	750	800	340	400	335	391	55	2048	320
