Menowa is a swp-c cardan shaft supplier from china, wholesale and direct sales swp-c cardan shaft at a reasonable price.

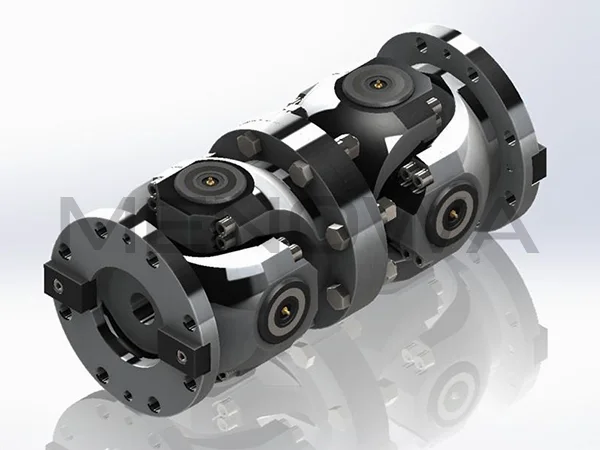

SWP-C cardan shaft serves as a vital mechanical transmission component widely applied in heavy industrial operational scenarios. Featuring a compact and sturdy structural layout, this transmission part is designed to transfer steady torque and rotational power between two misaligned drive shafts during continuous equipment operation. It delivers reliable angular compensation to adapt to minor installation deviations and slight positional shifts that occur amid long-term mechanical running conditions. Built with solid cross shaft and flange connection structures, it boasts strong load-bearing capacity and stable transmission efficiency, perfectly fitting for rolling mills, processing machinery and other heavy-duty production equipment. The refined structural design lowers operational friction and mechanical wear, extending steady working cycles and reducing daily maintenance needs. It maintains smooth and consistent power output even under harsh working environments and fluctuating operational loads, supporting the stable and continuous running of various industrial mechanical systems effectively.

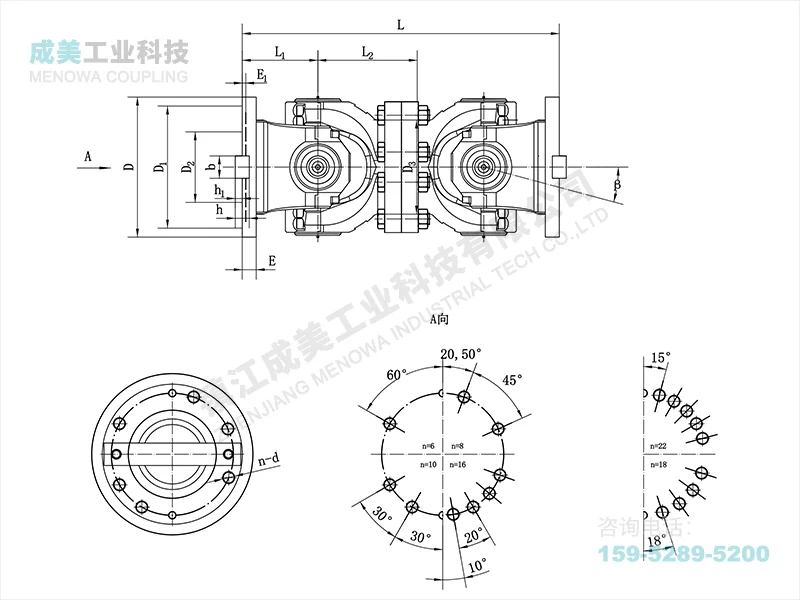

| Model | Rotary Diameter D mm | Nominal Torque Tn kN ·m | Pulsating Fatigue Torque Tp kN ·m | Alternating Fatigue Torque Tf kN ·m | Axis Angle β(°) | Size / mm | Rotational Inertia kg ·m2 | Quality kg | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | D1 | D2 (H7) | E | E1 | bxh | h1 | L1 | Nxd | ||||||||
| SWP160C | 160 | 20 | 14 | 10 | ≤15 | 360 | 140 | 95 | 15 | 4 | 20×12 | 6 | 90 | 6xφ13 | 0.103 | 32 |
| SWP180C | 180 | 28 | 20 | 14 | ≤15 | 420 | 155 | 105 | 15 | 4 | 24×14 | 7 | 105 | 6×φ15 | 0.195 | 48 |
| SWP200C | 200 | 40 | 28 | 20 | ≤15 | 480 | 175 | 125 | 17 | 5 | 28×16 | 8 | 120 | 8×φ15 | 0.325 | 65 |
| SWP225C | 225 | 56 | 40 | 28 | ≤15 | 580 | 196 | 135 | 20 | 5 | 32×18 | 9 | 145 | 8×φ17 | 0.628 | 98 |
| SWP250C | 250 | 80 | 56 | 40 | ≤15 | 660 | 218 | 150 | 25 | 5 | 40×25 | 12.5 | 165 | 8xφ19 | 1.163 | 149 |
| SWP285C | 285 | 112 | 78 | 56 | ≤15 | 720 | 245 | 170 | 27 | 7 | 40×30 | 15 | 180 | 8xφ21 | 2.163 | 212 |
| SWP315C | 315 | 160 | 112 | 80 | ≤15 | 820 | 280 | 185 | 32 | 7 | 40×30 | 15 | 205 | 10xφ23 | 3.671 | 296 |
| SWP350C | 350 | 224 | 157 | 112 | ≤15 | 900 | 310 | 210 | 35 | 8 | 50×32 | 16 | 225 | 10×φ23 | 6.197 | 405 |
| SWP390C | 390 | 315 | 220 | 158 | ≤10 | 860 | 345 | 235 | 40 | 8 | 70×36 | 18 | 215 | 10×φ25 | 9.728 | 512 |
| SWP435C | 435 | 450 | 315 | 225 | ≤10 | 980 | 385 | 255 | 42 | 10 | 80×40 | 20 | 245 | 16xφ28 | 17.112 | 713 |
| SWP480C | 480 | 630 | 440 | 315 | ≤10 | 1100 | 425 | 275 | 47 | 12 | 90×45 | 22.5 | 275 | 16×φ31 | 27.072 | 940 |
| SWP550C | 550 | 900 | 630 | 450 | ≤10 | 1220 | 492 | 320 | 50 | 12 | 100×45 | 22.5 | 305 | 16xφ31 | 56.050 | 1475 |
| SWP600C | 600 | 1250 | 875 | 625 | ≤10 | 1480 | 544 | 380 | 55 | 15 | 90×55 | 27.5 | 370 | 22×φ34 | 95.760 | 2128 |
| SWP650C | 650 | 1600 | 1120 | 800 | ≤10 | 1620 | 585 | 390 | 60 | 15 | 100×60 | 30 | 405 | 18×φ38 | 144.408 | 2735 |
