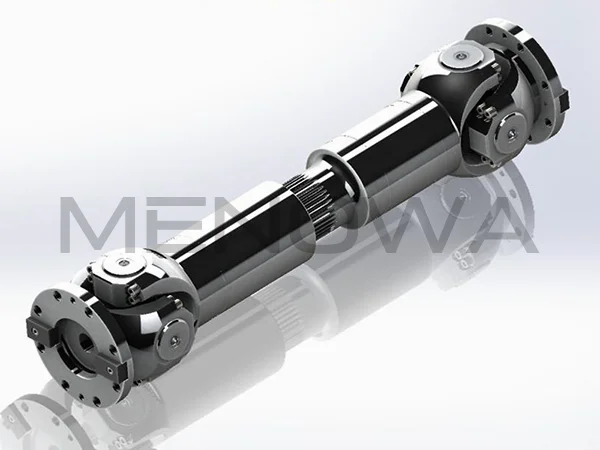

SWP-A Cardan Shaft

Menowa is a swp-a cardan shaft supplier from china, wholesale and direct sales swp-a cardan shaft at a reasonable price.

SWP-A cardan shaft serves as a vital mechanical transmission component widely applied in various industrial mechanical operation scenarios. Adopting a reasonable cross joint and spline telescopic structure, this cardan shaft can effectively compensate for angular deviation and axial displacement generated during equipment installation and daily operation. It steadily transmits torque and rotational power between misaligned driving and driven parts, ensuring continuous and smooth mechanical power output. The structural design adapts to complex working conditions with variable loads and frequent position adjustments, maintaining stable transmission performance for a long time. Made with sturdy and wear-resistant structural materials, it features good operational stability and long service life, fitting well for rolling equipment, processing machinery and other conventional industrial transmission systems to meet daily mechanical power connection and operation demands.

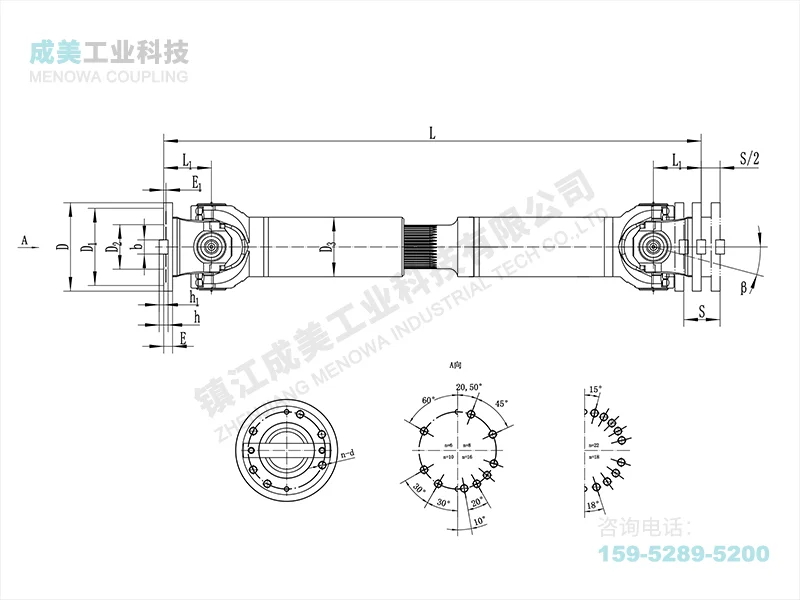

Model	Rotary Diameter D mm	Nominal Torque T_n kN ·m	Pulsating Fatigue Torque T_p kN ·m	Alternating Fatigue Torque T_f kN ·m	Axis Angle β(°)	Expansion Amount s mm	Size / mm										Rotational Inertia kg ·m²		Quality kg
Model	Rotary Diameter D mm	Nominal Torque T_n kN ·m	Pulsating Fatigue Torque T_p kN ·m	Alternating Fatigue Torque T_f kN ·m	Axis Angle β(°)	Expansion Amount s mm	L_min	D1	D2 (H7)	D3	E	E1	bxh	h1	L1	Nxd	L_min mm	Increase 100mm	L_min mm	Increase 100mm
SWP160A	160	20	14	10	≤15	50	655	140	95	121	15	4	20×12	6	90	6xφ13	0.167	0.008	52	2.5
SWP180A	180	28	20	14	≤15	60	760	155	105	127	15	4	24×14	7	105	6xφ15	0.304	0.012	75	3.4
SWP200A	200	40	28	20	≤15	70	825	175	125	140	17	5	28×16	8	120	8×φ15	0.490	0.016	98	3.8
SWP225A	225	56	40	28	≤15	80	950	196	135	168	20	5	32×18	9	145	8xφ17	0.916	0.039	143	6.2
SWP250A	250	80	56	40	≤15	90	1055	218	150	219	25	5	40×25	12.5	165	8xφ19	1.763	0.079	226	7.2
SWP285A	285	112	78	56	≤15	100	1200	245	170	219	27	7	40×30	15	180	8xφ21	3.193	0.099	313	9.4
SWP315A	315	160	112	80	≤15	110	1330	280	185	273	32	7	40×30	15	205	10×φ23	5.270	0.219	425	12.8
SWP350A	350	224	157	112	≤15	120	1480	310	210	273	35	8	50×32	16	225	10×φ23	8.645	0.226	565	13.9
SWP390A	390	315	220	158	≤10	120	1480	345	235	273	40	8	70×36	18	215	10×φ25	12.920	0.303	680	21.1
SWP435A	435	450	315	225	≤10	150	1670	385	255	325	42	10	80×40	20	245	16×φ28	24.240	0.545	1010	25.7
SWP480A	480	630	440	315	≤10	170	1860	425	275	351	47	12	90×45	22.5	275	16×φ31	38.736	0.755	1345	30.7
SWP550A	550	900	630	450	≤10	190	2100	492	320	426	50	12	100×45	22.5	305	16×φ31	76.570	1.435	2015	38.1
SWP600A	600	1250	875	625	≤10	210	2520	544	380	480	55	15	90×55	27.5	370	22xφ34	134.100	2.493	2980	53.2
SWP650A	650	1600	1120	800	≤10	230	2630	585	390	500	60	15	100×60	30	405	18×φ38	192.720	3.210	3650	65.1
