SWC-WH Cardan Shaft

Menowa is a swc-wh cardan shaft supplier from china, wholesale and direct sales swc-wh cardan shaft at a reasonable price.

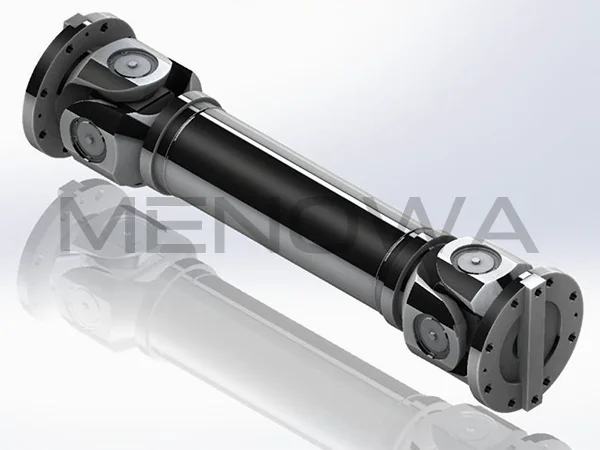

SWC-WH cardan shaft serves as a vital mechanical transmission component widely applied in various heavy industrial mechanical transmission systems. It features a reasonable and compact structural design, adapting well to limited installation spaces in different mechanical equipment. This cardan shaft boasts steady angular compensation performance, effectively connecting driving and driven shafts that are not kept on a straight axis and properly offsetting angular and radial deviations during operation. It can stably transmit torque in various working conditions, maintaining smooth and consistent mechanical rotation operation. With optimized internal structural design and friction reduction processing on key contact parts, it lowers operational wear and extends steady running cycles. It fits perfectly for metallurgical machinery, rolling equipment and other heavy-duty transmission scenarios, ensuring continuous and reliable power transmission for daily mechanical operation and industrial production processes.

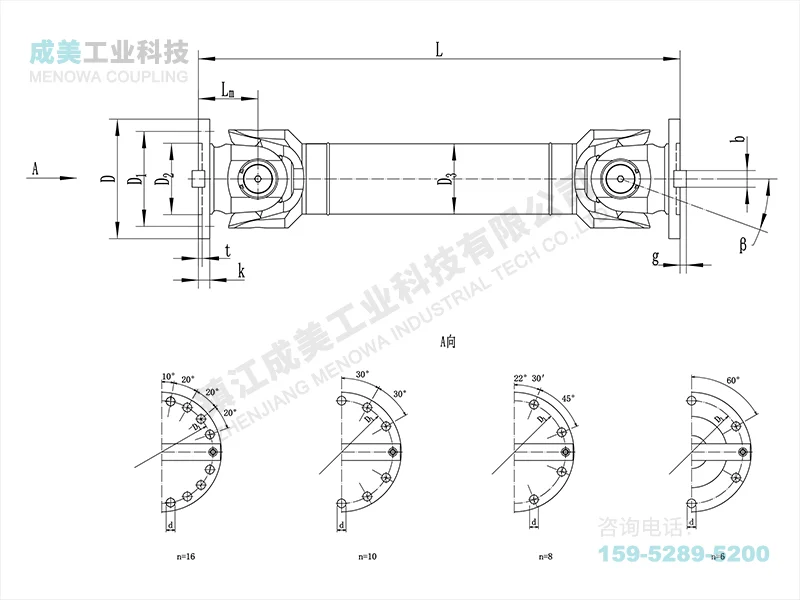

Model	Rotary Diameter D mm	Nominal Torque T_n KN ·m	Fatigue Torque T_f KN ·m	Bearing Life Coefficient K_L	Axis Angle β (°)	Size / mm										Rotational Inertia (kg ·m²)		Quality kg
Model	Rotary Diameter D mm	Nominal Torque T_n KN ·m	Fatigue Torque T_f KN ·m	Bearing Life Coefficient K_L	Axis Angle β (°)	L_min	D₁ (js11)	D₂ (H7)	D₃	L_m	n×φd	k	t	b (h9)	g	L_min mm	Increase 100mm	L_min mm	Increase 100mm
SWC100WH	100	2.5	1.25	5.795×10^-4	≤25	243	84	57	60	55	6×φ9	7	2.5	一	一	0.004	0.0002	4.5	0.35
SWC120WH	120	5	2.5	4.641×10^-3	≤25	307	102	75	70	65	8×φ11	8	2.5	一	一	0.01	0.0004	7.7	0.55
SWC150WH	150	10	5	0.51×10^-1	≤25	350	130	90	89	80	8×φ13	10	3	一	一	0.037	0.0016	18	0.85
SWC180WH	180	22.4	11.2	0.245	≤15	480	155	105	114	110	8×φ17	17	5	24	7	0.15	0.007	48	2.8
SWC200WH	200	36	18	1.115	≤15	500	170	120	133	115	8×φ17	17	5	28	8	0.246	0.013	72	3.7
SWC225WH	225	56	28	7.812	≤15	520	196	135	152	120	8×φ17	20	5	32	9	0.365	0.023	78	4.9
SWC250WH	250	80	40	2.82×10¹	≤15	620	218	150	168	140	8×φ19	25	6	40	12.5	0.847	0.028	124	5.3
SWC285WH	285	120	58	8.28×10¹	≤15	720	245	170	194	160	8×φ21	27	7	40	15	1.756	0.051	185	6.3
SWC315WH	315	160	80	2.79×10²	≤15	805	280	185	219	180	10×φ23	32	8	40	15	2.893	0.08	262	8
SWC350WH	350	225	110	7.44×10²	≤15	875	310	210	245	194	10×φ23	35	8	50	16	4.814	0.146	349	11.5
SWC390WH	390	320	160	1.86×10³	≤15	955	345	235	267	215	10×φ25	40	8	70	18	8.406	0.222	506	15
SWC440WH	440	500	250	8.25×10³	≤15	1155	390	255	325	260	16×φ28	42	10	80	20	15.79	0.474	790	21.7
SWC490WH	490	700	350	2.154×10⁴	≤15	1205	435	275	351	270	16×φ31	47	12	90	22.5	27.78	0.690	1104	27.3
SWC550WH	550	1000	500	6.335×10⁴	≤15	1355	492	320	426	305	16×φ31	50	12	100	22.5	48.32	1.357	1526	34
