SWC-CH Cardan Shaft

Menowa is a swc-ch cardan shaft supplier from china, wholesale and direct sales swc-ch cardan shaft at a reasonable price.

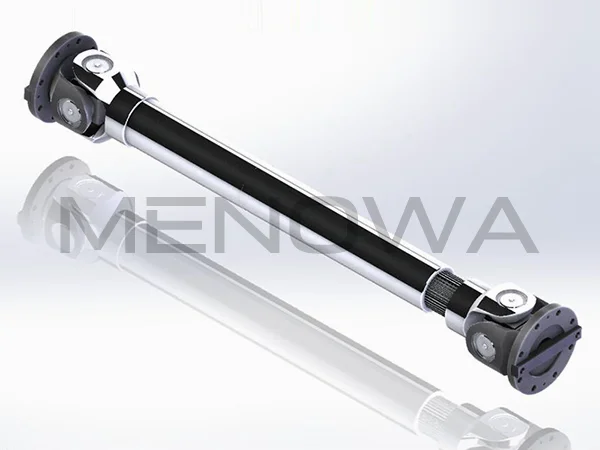

SWC-CH cardan shaft serves as a vital transmission component widely applied in various heavy industrial mechanical transmission systems. It is designed to deliver steady torque and rotational power between two shafts that are not perfectly aligned in installation and operation processes. The well-structured mechanical design enables the shaft to effectively compensate for angular, radial and axial misalignment generated by equipment installation deviations and long-term operational vibration. Made of sturdy high-strength alloy materials, this cardan shaft features solid structural rigidity and good wear resistance, adapting well to continuous high-load working scenarios in steel processing, papermaking, mechanical leveling and other industrial fields. It runs with low operational noise and stable transmission performance, bringing convenient daily assembly, disassembly and maintenance work. With reliable running performance and long service life, it effectively keeps mechanical transmission systems operating smoothly and supports normal and efficient operation of overall industrial equipment for a long time.

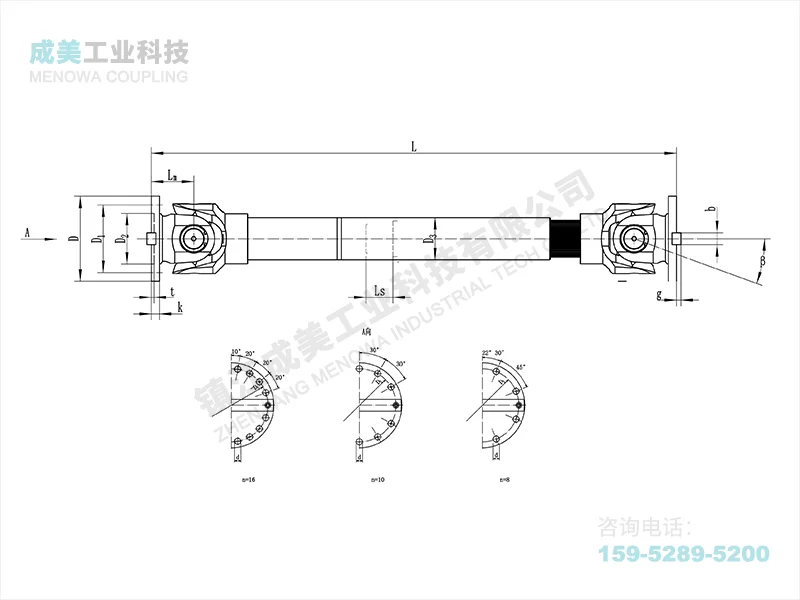

Model	Rotary Diameter D mm	Nominal Torque T_n KN ·m	Fatigue Torque T_f KN ·m	Bearing Life Coefficient K_L	Axis Angle β (°)	Expansion Amount L_s mm	Size / mm										Rotational Inertia (kg ·m²)		Quality kg
Model	Rotary Diameter D mm	Nominal Torque T_n KN ·m	Fatigue Torque T_f KN ·m	Bearing Life Coefficient K_L	Axis Angle β (°)	Expansion Amount L_s mm	L_min	D₁ (js11)	D₂ (H7)	D₃	L_m	n×φd	k	t	b (h9)	g	L_min mm	Increase 100mm	L_min mm	Increase 100mm
SWC180CH1	180	22.4	11.2	0245	≤15	200	925	155	105	114	110	8×φ17	17	5.0	24	7.0	0.181	0.007	74	2.8
SWC180CH2	180	22.4	11.2	0245	≤15	700	1425	155	105	114	110	8×φ17	17	5.0	24	7.0	0.216	0.007	104	2.8
SWC200CH1	200	36	18	1.115	≤15	200	975	170	120	133	115	8×φ17	17	5.0	38	8.0	0.328	0.013	99	3.7
SWC200CH2	200	36	18	1.115	≤15	700	1465	170	120	133	115	8×φ17	17	5.0	38	8.0	0.402	0.013	139	3.7
SWC225CH1	225	56	28	7.812	≤15	220	1020	196	135	152	120	8xφ17	20	5.0	32	9.0	0.561	0.023	132	4.9
SWC225CH2	225	56	28	7.812	≤15	700	1500	196	135	152	120	8xφ17	20	5.0	32	9.0	0.674	0.023	182	4.9
SWC250CH1	250	80	40	2.82×101	≤15	300	1215	218	150	168	140	8×φ19	25	5.0	40	12.5	1.016	0.028	190	5.3
SWC250CH2	250	80	40	2.82×101	≤15	700	1615	218	150	168	140	8×φ19	25	5.0	40	12.5	1.127	0.028	235	5.3
SWC285CH1	285	120	58	8.82×101	≤15	400	1475	245	170	194	160	8×φ21	27	7.0	40	15.0	2.156	0.051	300	6.3
SWC285CH2	285	120	58	8.82×101	≤15	800	1875	245	170	194	160	8×φ21	27	7.0	40	15.0	2.360	0.051	358	6.3
SWC315CH1	315	160	80	2.79×102	≤15	400	1600	280	185	219	180	10×φ23	32	8.0	40	15.0	3.812	0.080	434	8.0
SWC315CH2	315	160	80	2.79×102	≤15	800	2000	280	185	219	180	10×φ23	32	8.0	40	15.0	4.150	0.080	514	8.0
SWC350CH1	350	225	110	7.44×102	≤15	400	1715	310	210	245	194	10×φ23	35	8.0	50	16.0	5.926	0.146	622	11.5
SWC350CH2	350	225	110	7.44×102	≤15	800	2115	310	210	245	194	10×φ23	35	8.0	50	16.0	6.814	0.146	773	11.5
SWC390CH1	390	320	160	1.86×103	≤15	400	1845	345	235	267	215	10×φ25	40	8.0	70	18.0	12.73	0.222	817	15.0
SWC390CH2	390	320	160	1.86×103	≤15	800	2245	345	235	267	215	10×φ25	40	8.0	70	18.0	13.62	0.222	964	15.0
SWC440CH1	440	500	250	8.25×103	≤15	400	2110	390	255	325	260	15×φ28	42	10.0	80	20.0	22.54	0.474	1321	21.7
SWC440CH2	440	500	250	8.25×103	≤15	800	2510	390	255	325	260	15×φ28	42	10.0	80	20.0	24.43	0.474	1537	21.7
SWC490CH1	490	700	350	2.154×104	≤15	400	2220	435	275	351	270	16×φ31	47	12.0	90	22.5	35.21	0.690	1640	27.3
SWC490CH2	490	700	350	2.154×104	≤15	800	2620	435	275	351	270	16×φ31	47	12.0	90	22.5	37.11	0.690	1860	27.3
SWC550CH1	550	1000	500	6.335×104	≤15	400	2585	492	320	426	305	16×φ31	50	12.0	100	22.5	72.79	1.357	2585	34
SWC550CH2	550	1000	500	6.335×104	≤15	1000	3085	492	320	426	305	16×φ31	50	12.0	100	22.5	79.57	1.357	3045	34
