SWC-BH Cardan Shaft

Menowa is a swc-bh cardan shaft supplier from china, wholesale and direct sales swc-bh cardan shaft at a reasonable price.

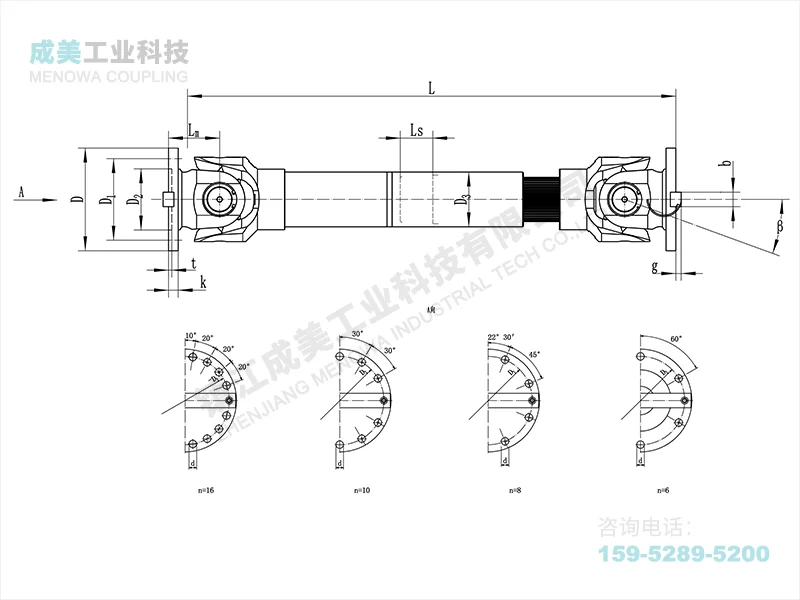

SWC-BH cardan shaft serves as a key transmission component widely applied in various heavy industrial mechanical systems. Featuring an integrated fork head structure, it boasts a compact and reasonable overall layout that fits well in limited installation spaces on different types of equipment. This mechanical part is designed to steadily transmit torque and continuous rotational motion between two shafts that are not aligned on the same axis or have obvious angular deviations. It offers reliable angular compensation capacity to adapt to diverse operating deflection conditions during equipment operation. With optimized internal structural design and fine processing workmanship, it effectively reduces friction and mechanical wear during rotation, maintaining stable and smooth power transmission for a long time. It suits metallurgical, mining, papermaking and lifting machinery, requiring only routine simple maintenance to keep consistent working performance and extend stable service cycle in harsh industrial working environments.

Model	Rotary Diameter D/ mm	Nominal Torque T_n KN ·m	Fatigue Torque T_f KN ·m	Bearing Life Coefficient K_L	Axis Angle β (°)	Expansion Amount L_s mm	Size / mm										Rotational Inertia (kg ·m²)		Quality kg
Model	Rotary Diameter D/ mm	Nominal Torque T_n KN ·m	Fatigue Torque T_f KN ·m	Bearing Life Coefficient K_L	Axis Angle β (°)	Expansion Amount L_s mm	L_min	D₁ (js11)	D₂ (H7)	D₃	L_m	n×φd	k	t	b (h9)	g	L_min mm	Increase 100mm	L_min mm	Increase 100mm
SWC100BH	100	2.5	1.25	5.795×10^-4	≤25	55	405	84	57	60	55	6×φ9	7	2.5	一	一	0.004	0.0002	6.1	0.35
SWC120BH	120	5	2.5	4.641×10^-3	≤25	80	485	102	75	70	65	8×φ11	8	2.5	一	一	0.011	0.0004	10.8	0.55
SWC150BH	150	10	5	0.51×10^-1	≤25	80	590	130	90	89	80	8×φ13	10	3	一	一	0.042	0.001	24.5	0.85
SWC180BH	180	22.4	11.2	0.245	≤15	100	840	155	105	114	110	8×φ17	17	5	24	7	0.175	0.007	70	2.8
SWC200BH	200	36	18	1.115	≤15	110	860	170	120	133	115	8×φ17	17	5	28	8	0.314	0.013	98	3.7
SWC225BH	225	56	28	7.812	≤15	140	920	196	135	152	120	8×φ17	20	5	32	9	0.538	0.023	122	4.9
SWC250BH	250	80	40	2.82×10¹	≤15	140	1035	218	150	168	140	8×φ19	25	6	40	12.5	0.966	0.028	172	5.3
SWC285BH	285	120	58	8.28×10¹	≤15	140	1190	245	170	194	160	8×φ21	27	7	40	15	2.011	0.051	263	6.3
SWC315BH	315	160	80	2.79×10²	≤15	140	1315	280	185	219	180	10×φ23	32	8	40	15	3.605	0.08	382	8
SWC350BH	350	225	110	7.44×10²	≤15	150	1440	310	210	245	194	10×φ23	35	8	50	16	5.316	0.146	532	11.5
SWC390BH	390	320	160	1.86×10³	≤15	170	1590	345	235	267	215	10×φ25	40	8	70	18	12.16	0.222	738	15
SWC440BH	440	500	250	8.25×10³	≤15	190	1875	390	255	325	260	16×φ28	42	10	80	20	21.42	0.474	1190	21.7
SWC490BH	490	700	350	2.154×10⁴	≤15	190	1985	435	275	351	270	16×φ31	47	12	90	22.5	34.10	0.690	1542	27.3
SWC550BH	550	1000	500	6.335×10⁴	≤15	240	2300	492	320	426	305	16×φ31	50	12	100	22.5	68.92	1.357	2380	34
