LLB Tire Coupling

Menowa is a llb tire coupling supplier from china, wholesale and direct sales llb tire coupling at a reasonable price.

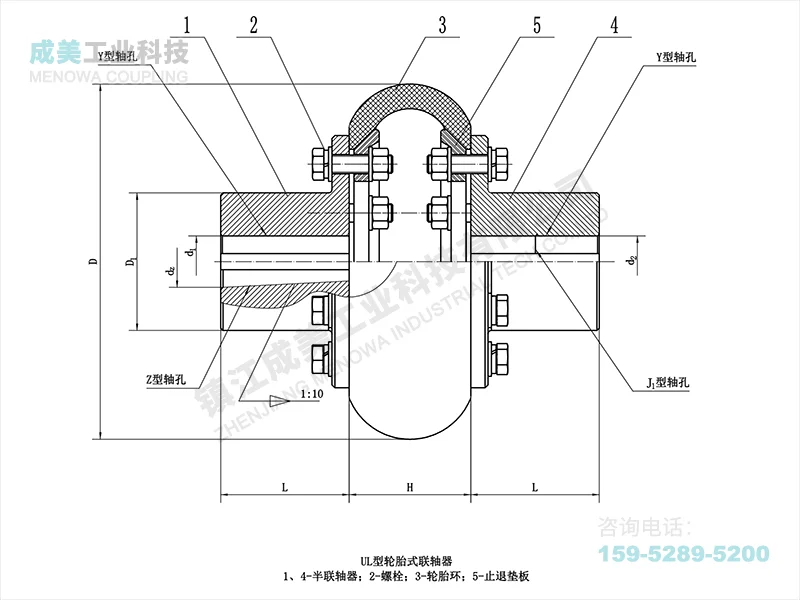

Our LLB skeleton tire coupling manufactured is formed by fixing two half couplings and a tire body together through bolts. The shaft hole types are divided into Y type, J1 type and Z1 type. The coupling designed and manufactured by our company has good shock absorption and excellent offset compensation performance between shafts. The working temperature is -20℃ to +80℃, and the transmission torque is 1010N.m to 20000N.m. It is suitable for the working conditions of dust, moisture, impact, vibration, variable forward and reverse rotation and frequent starting. It is convenient for maintenance, disassembly and assembly. It does not need lubrication and is durable.

Model	Model of Tire Body	Nominal Torque	Allowable Rotating Speed	Shaft Hole Diameter	Shaft Hole Length		D	D₁	H	Rotational Inertia	Weight
		Tn N.m	[n] r/min	d₁、d₂	Y	J₁,Z 型				kg.m2	kg
		Tn N.m	[n] r/min	d₁、d₂	L					kg.m2	kg
LLB1	LTB1	10	5000	6	16	-	63	20	26	0.0003	0.4
				7	16	-
				8	20	-
				9	20	-
				10	25	22
				11	25	22
LLB2	LTB2	50	5000	12	32	27	100	36	32	0.0035	1.5
				14	32	27
				16	42	30
				18
				19
LLB3	LTB3	100	4500	16	42	30	120	44	39	0.01	2.2
				18
				19
				20	52	38
				22
				24
LLB4	LTB4	160	4200	25	62	44	140	50	45	0.021	3.1
				28	62	44
				30	82	60
				32
				35
LLB5	LTB5	224	4000	25	62	44	160	60	51	0.028	5
				28	62	44
				30	82	60
				32
				35
				38
LLB6	LTB6	315	3600	30	82	60	185	70	58	0.07	8.1
				32
				35
				38
				40	112	84
				42
				45
LLB7	LTB7	500	3200	35	82	60	220	85	68	0.15	13
				38	82	60
				40	112	84
				42
				45
				48
				50
				55
				56
LLB8	LTB8	800	2600	40	112	84	265	100	82	0.3	22
				42
				45
				48
				50
				55
				56	142	107
				60
				63
				65
LLB9	LTB9	1250	2200	45	112	84	310	120	106	0.75	35
				48
				50
				55
				56	142	107
				60
				63
				65
				70
				71
				75
LLB10	LTB10	2500	1800	60	142	107	400	150	124	2.2	69
				63
				65
				70
				71
				75
				80	172	132
				85
				90
				95
LLB11	LTB11	5000	1600	80	172	132	450	190	140	4.4	110
				85
				90
				95
				100	212	167
				110
				120
				125
LLB12	LTB12	10000	1200	100	212	167	560	239	172	14	190
				110
				120
				125
				130	252	202
				140
				150
LLB13	LTB13	20000	1000	130	252	202	700	318	220	38	340
				140
				150
				160	302	242
				170
				180
				190	352	282
				200	352	282
