WGZ Drum Gear Coupling

Menowa is a wgz drum gear coupling supplier from china, wholesale and direct sales wgz drum gear coupling at a reasonable price.

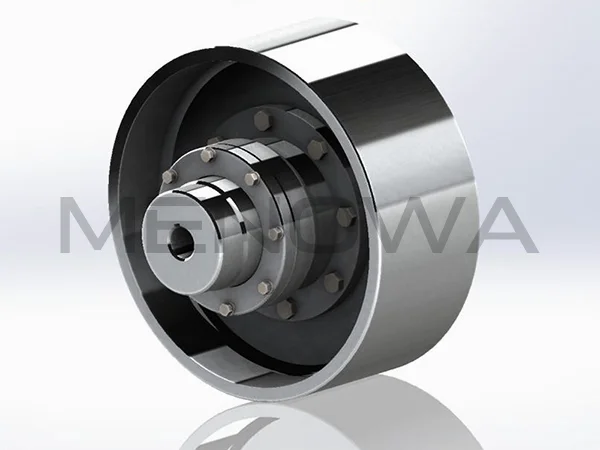

WGZ drum gear coupling serves as a key transmission component widely applied in various industrial mechanical drive systems, relying on precise meshing between internal and external gear structures to stably transfer torque between connected rotating shafts. Its specially designed drum-shaped tooth profile enables smooth and stable tooth surface contact during operation, effectively accommodating radial, axial and angular misalignment that commonly occurs during equipment running. This structural feature relieves extra mechanical stress on shafts and bearings, reducing wear and vibration during long-term equipment operation. The coupling boasts a compact and sturdy structural layout, adapting well to heavy-load and low-speed working scenarios in metallurgy, mining, hoisting and general machinery industries. It is simple to install, disassemble and maintain, keeping steady transmission performance in complex working environments and extending the overall service life of matched mechanical equipment effectively.

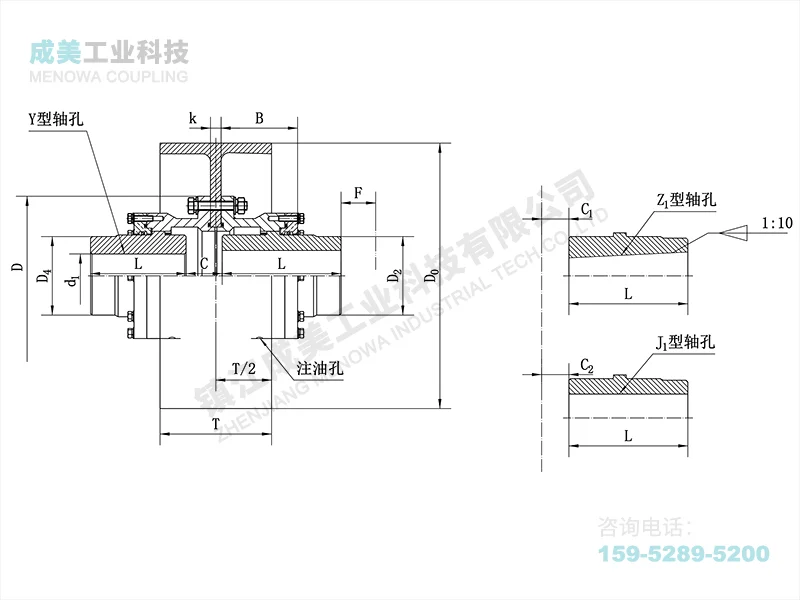

Model	Nominal Torque N ·m	Allowable Rotating Speed rpm	Shaft Hole Diameter d1、d2、dZ	Shaft Hole Length L		D0	D	D2	D4	B	F	C	C1	C2	C3	Mass Without Brake Wheels kg	Rotational Inertia kg ·m²
Model	Nominal Torque N ·m	Allowable Rotating Speed rpm	Shaft Hole Diameter d1、d2、dZ	Y	J1、Z1		D	D2	D4	B	F	C	C1	C2	C3	Mass Without Brake Wheels kg	Rotational Inertia kg ·m²
WGZ1	800	4000	12,14	32	一	160 200 250	122	98	60	58	30	30	一	一	1	5.62	0.0078
			16,18,19	42	一							20	一	一
			20,22,24	52	一							10	一	一
			25,28	62	44							3	19	18
			30,32,35,38	82	60								23	12
			40,42	112	84								29	12
WGZ2	1400	4000	22,24	52	一	200 250 315	150	118	77	68	30	20	一	一	2	9.65	0.022
			25,28	62	一							10	一
			30,32,35,38	82	60							3	23	16
			40,42,45,48,50,55,56	112	84							3	29	16
WGZ3	2800	4000	22,24	52	一	200 250 315	170	140	90	80	30	33	一	一	2	16.5	0.047
			25,28	62	一							23	一	一
			30,32,35,38	82	60							3	23	25
			40,42,45,48,50,55,56	112	84								29	16
			60,63	142	107								36	16
WGZ4	5000	3000	30,32,35,38	82	一	250 315 400	200	160	112	90	30	13	一	一	2	25.3	0.098
			40,42,45,48,50,55,56	112	84							3	29	17
			60,63,65,70,71,75	142	107								36
			80	172	132								41
WGZ5	8000	3000	30,32,35,38	82	一	315 400	225	180	128	100	30	23	一	一	2	34.7	0.174
			40,42,45,48,50,55,56	112	84							3	29 36 41	19
			60,63,65,70,71,75	142	107
			80,85,90	172	132
WGZ6	11200	3000	32,35,38	82	一	315 400	245	200	145	112	30	35	一	一	2	51.3	0.29
			40,42,45,48,50,55,56	112	一							5	一	一
			60,63,65,70,71,75	142	107								38 43	20
			80,85,90,95	172	132								38 43
			100	212	167								48
WGZ7	16000	2500	32,35,38	82	一	400 500	272	230	160	122	30	45	一	一	3	68	0.53
			40,42,45,48,50,55,56	112	一							15	一	一
			60,63,65,70,71,75	142	107							5	38	20
			80,859,095	172	132							5	43
			100,110	202	167								48
WGZ8	22400	2500	55,56	112	一	400 450	290	245	176	136	30	29	一	一	3	79	0.71
			60,63,65,70,71,75	142	107							5	38	34
			80,85,90,95	172	132								43	20
			100,110,120,125	212	167								48	20
WGZ9	28000	2000	65,70,71,75	142	107	400 500 630	315	265	190	140	30	5	38	38	3	106.5	1.05
			80,85,90,95	172	132								43	28
			100,110,120,125	212	167								48
			130,140	252	202								53
WGZ10	45000	2000	75	142	一	400 500 630	355	300	225	165	30	28	一	一	3	159	1.74
			80,85,90,95	172	132							5	43	38
			100,110,120,125	212	167								48	28
			130,140,150	252	202								53
			160	302	242								63
WGZ11	63000	1700	85,90,95	172	一	500 630 710	412	345	256	180	40	15	一	一	4	215	3.67
			100,110,120,125	212	162							8	51	32
			130,140,150	252	202								56
			160,170,180	302	242								66
WGZ12	90000	1700	120,125	212	162	500 630 710	440	375	288	207	40	8	51	45	4	303	6.4
			130,140,150	252	202								56 66 76	32
			160,170,180	302	242
			190,200	352	282
WGZ13	125000	1700	140,150	252	202	630 710	490	425	320	235	50	8	56	38	4	391	10.45
			160,170,180	302	242								66	32
			190,200,220	352	282								76	32
WGZ14	180000	1500	160,170,180	302	242	710 800	545	462	362	265	50	10	68	32	4	523	17.48
			190,200,220	352	282								78	32
			240,250,260	410	330								一	10
