NGCL Drum Gear Coupling

Menowa is a ngcl drum gear coupling supplier from china, wholesale and direct sales ngcl drum gear coupling at a reasonable price.

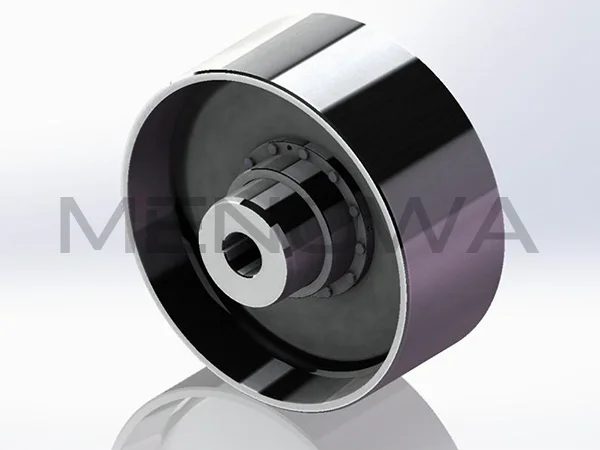

NGCL drum gear coupling is a reliable rigid and flexible transmission component widely applied in mechanical shaft connection systems. It is mainly composed of inner gear rings and flange half couplings with matched external teeth, featuring specially designed drum-shaped outer teeth with a spherical structure centered on the gear axis. The reasonable tooth side clearance enables the device to effectively compensate for angular and radial misalignment between connected shafts during equipment operation. This structural design optimizes gear surface contact status, steadily transmits driving torque, and adapts well to low-speed and heavy-load working environments in metallurgy, mining and port machinery. Equipped with a practical brake wheel structure, it integrates transmission and braking coordination for mechanical operation. With good sealing and lubrication adaptability, it reduces daily wear of core parts, stabilizes long-term running performance, and extends overall service life with simple and convenient daily maintenance work.

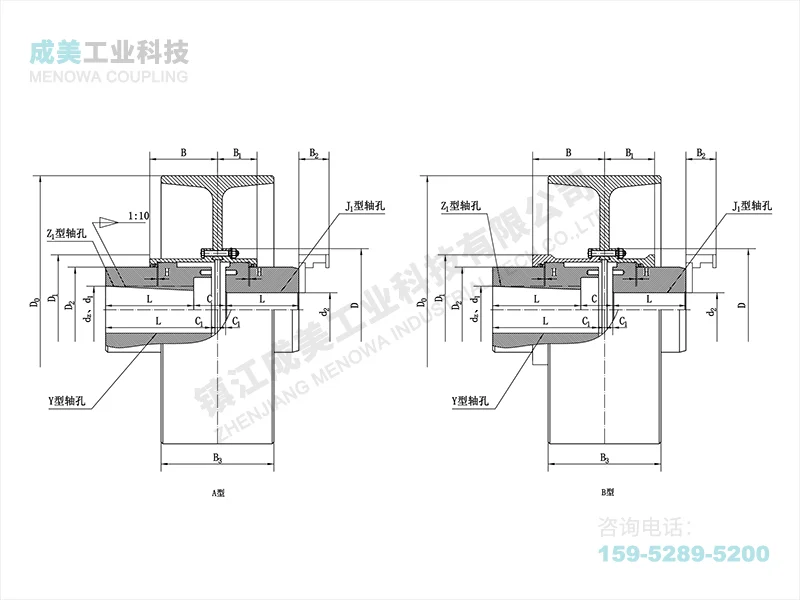

Model	Nominal Torque KN·m	Allowable Rotating Speed rpm	Shaft Hole Diameter		Shaft Hole Length L		D₀	D	D₁	D₂	C	C₁	H	B	B₁	B₂	B₃	Quality kg	Rotational Inertia kg·m²
Model	Nominal Torque KN·m	Allowable Rotating Speed rpm	d_z	d₁、d₂	Y	J₁、Z₁	D₀	D	D₁	D₂	C	C₁	H	B	B₁	B₂	B₃	Quality kg	Rotational Inertia kg·m²
NGCL1	0.63	4000	20~35	20,22,24	52	38	160	103	71	50	22	8	2	56	42	38	68	7	0.07
				25,28	62	44					26							7.3	0.07
				30,32,35	82	60					30							8	0.071
NGCL2	1.00	4000	25~45	25,28	62	44	160	115	83	60	26	8	2	68	48	42	68	9	0.079
				30,32,35,38	82	60					30							9.7	0.08
				40,42,45	112	84					36							11	0.083
NGCL3	1.60	3800	28~56	28	62	44	200	127	95	75	26	8	2	70	49	42	85	14.6	0.181
				30,32,35,38	82	60					30							15.2	0.184
				40,42,45,48,50,55,56	112	84					36							17	0.187
NGCL4	2.80	3800	38~65	38	82	60	200	149	116	90	30	8	2	74	53	42	85	18.6	0.225
				40,42,45,48,50,55,56	112	84					36							21.4	0.237
				60,63,65	142	107					43							23.8	0.246
NGCL5	4.50	3000	40~75	40,42,45,48,50,55,56	112	84	250	167	134	105	38	10	2.5	84	59	42	105	31.8	0.58
NGCL5	4.50	3000	40~75	60,63,65,70,71,75	142	107	250	167	134	105	45	10	2.5	84	59	42	105	34.4	0.609
NGCL6	6.30	3000	45~90	45,48,50,55,56	112	84	250	187	153	125	38	10	2.5	85	60	42	105	37.2	0.714
				60,63,65,70,71,75	142	107					45							38.5	0.754
				80,85,90	172	132					50							47.6	0.795
NGCL7	8.00	2400	50~100	50,55,56	112	84		204	170	140	38	10	2.5	93	64	42	132	48.8	1.17
				60,63,65,70,71,75	142	107	315				45							55.2	1.234
				80,85,90,95	172	132	(300)				50							61.8	1.299
				100	212	167					55							71.1	1.388
NGCL8	11.20	1900	55~110	55,56	112	84	400	230	186	155	40	12	3	112	77	47	168	80.7	3.747
				60,63,65,70,71,75	142	107					47							90	3.841
				80,85,90,95	172	132					52							96.5	3.939
				100,110	212	167					57							108	4.072
NGCL9	18.00	1500	60~130	60,63,65,70,71,75	142	107	500	256	212	180	48	13	3	119	80	47	210	128	9.427
				80,85,90,95	172	132					53							138	9.605
				100,110,120,125	212	167					58							151	9.847
				130	252	202					63							167	10.109
NGCL10	25.00	1200	65~150	65,70,71,75	142	107	630 (600)	287	239	200	50	15	3.5	120	90	47	265	176	28.238
				80,85,90,95	172	132					55							190	28.509
				100,110,120,125	212	167					60							209	28.879
				130,140,150	252	202					65							237	29.248
NGCL11	35.50	1050	70~170	70,71,75	142	107	710 (700)	325	276	235	51	16	3.5	134	94	47	298	257	44.309
				80,85,90,95	172	132					56							275	44.825
				100,110,120,125	212	167					61							300	45.53
				130,140,150	252	202					66							326	46.235
				160,170	302	242					76							357	47.08
NGCL12	56.00	1050	75~200	75	142	107	710 (700)	362	313	270	52	17	4	164	104	49	298	306	47.88
				80,85,90,95	172	132					57							317	48.29
				100,110,120,125	212	167					62							351	49.52
				130,140,150	252	202					67							384	50.25
				160,170,180	302	242					77							425	52.22
				190,200	352	282					87							464	53.69
NGCL13	80.00	950	150~220	150	252	202	800	412	350	300	68	18	4.5	165	113	49	335	490	82.7
				160,170,180	302	242					78							544	84.7
				190,200,220	352	282					88							596	86.67
NGCL14	125.00	950	170~250	170,180	302	242	800	462	420	335	80	20	5.5	209	157	63	335	670	99.1
				190,200,220	352	282					90							736	102.2
				240,250	410	330					100							850	105.9
