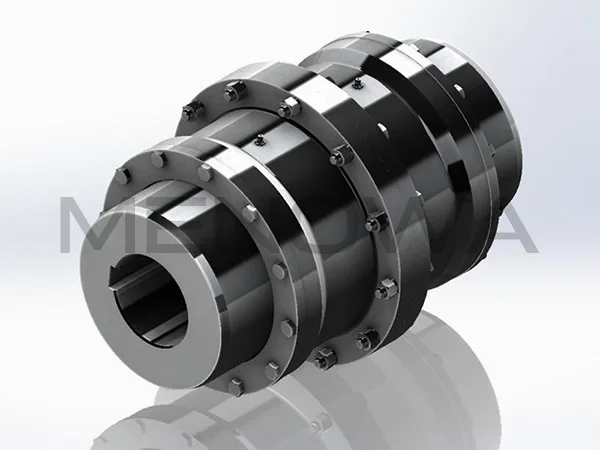

GICL Drum Gear Coupling

Menowa is a gicl drum gear coupling supplier from china, wholesale and direct sales gicl drum gear coupling at a reasonable price.

GICL drum gear coupling serves as a key transmission component widely applied in various industrial mechanical drive systems, relying on precise meshing between internal and external gear structures to stably transfer torque between connected shafts. Its specially designed drum-shaped tooth profile enables smooth and uniform tooth surface contact during operation, effectively adapting to radial, axial and angular misalignment between two connected shafts without causing abnormal wear or edge extrusion on gear surfaces. This structural feature helps buffer vibration and impact generated during equipment operation, maintaining stable power transmission status for a long time. The whole structure adopts a reasonable compact layout, facilitating routine disassembly, daily maintenance and regular lubrication work for staff. It fits well with low-speed and heavy-load working scenarios in metallurgy, mining, hoisting and general machinery fields, steadily supporting continuous and efficient operation of various mechanical transmission equipment under complex working conditions.

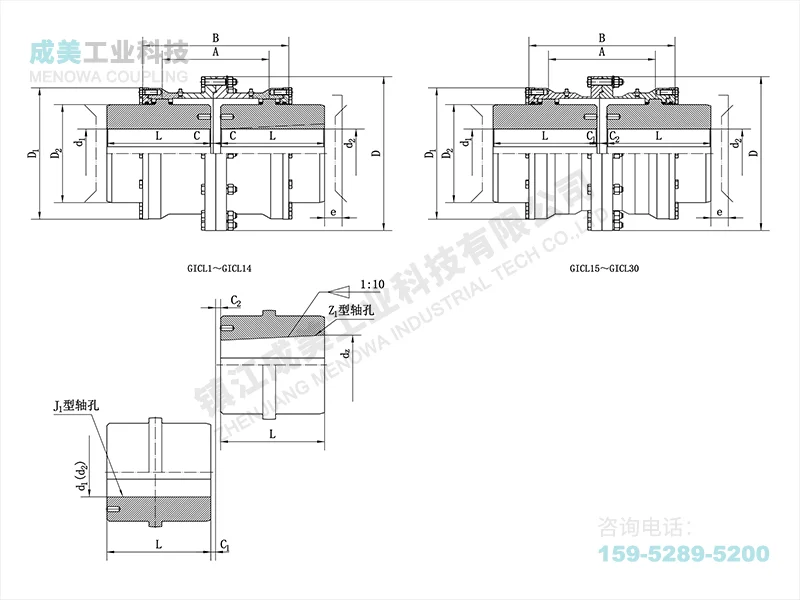

Model	Rated Torque	Allowable Rotating Speed	Shaft Hole Diameter	Shaft Hole Length L		D	D₁	D₂	B	A	C	C₁	C₂	e	Allowable Radial Compensation Amount	Rotational Inertia	Quality
			d₁、d₂	Y	J₁、Z₁
			d₁、d₂	L
	kN ·m	rpm	mm												△Y	kg ·m²	kg
GICL1	0.8	7100	16,18,19	42	一	125	95	60	115	75	20	一	一	30	1.96	0.009	5.9
			20,22,24	52	38						10	一	24
			25,28	62	44						2.5	一	19
			30,32,35,38	82	60						2.5	15	22
GICL2	1.4	6300	25,28	62	44	145	120	75	135	88	10.5	12.5	29	30	2.36	0.02	9.7
			30,32,35,38	82	60						2.5	一	30
			40,42,45,48	112	84						2.5	13.5	28
GICL3	2.8	5900	30,32,35,38	82	60	170	140	95	155	106	3	24.5	25	30	2.75	0.047	17.2
			40,42,45,48,50,55,56	112	84							17	28
			60	142	107							17	35
GICL4	5.0	5400	32,35,38	82	60	195	165	115	178	125	14	37	32	30	3.27	0.091	24.9
			40,42,45,48,50,55,56	112	84						3	17	28
			60,63,65,70	142	107						3	17	35
GICL5	8.0	5000	40,42,45,48,50,55,56	112	84	225	183	130	198	142	3	25	28	30	3.8	0.167	38
			60,63,65,70,71,75	142	107							20	35
			80	172	132							22	43
GICL6	11.2	4800	48,50,55,56	112	84	240	200	145	218	160	6	35	35	30	4.3	0.267	48.2
			60,63.65,70,71,75	142	107						4	20	35
			80,85,90	172	132						4	22	43
GICL7	15.0	4500	60,63,65,70,71,75	142	107	260	230	160	244	180	4	25	35	30	4.7	0.453	68.9
			80,85,90,95	172	132							22	43
			100	212	167							22	48
GICL8	21.2	4000	65,70,71,75	142	107	280	245	175	264	193	5	35	35	30	5.24	0.646	83.3
			80,85,90,95	172	132							22	43
			100,110	212	167							22	48
GICL9	26.5	3500	70,71,75	142	107	315	270	200	284	208	10	45	45	30	5.63	1.036	110
			80,85,90,95	172	132						5	22	43
			100,110,120,125	212	167						5	22	49
GICL10	42.5	3200	80,85,90,95	172	132	345	300	220	330	249	5	43	43	30	6.81	1.88	157
			100,110,120	212	167							22	49
			130,140	252	202							29	54
GICL11	60.0	3000	100,110,120	212	167	380	330	260	360	267	6	29	49	40	7.46	3.28	217
			130,140,150	252	202								54
			160	302	242								64
GICL12	80.0	2600	120	212	167	440	380	290	416	313	6	57	57	40	8.77	5.08	305
			130,140,150	252	202							29	55
			160,170,180	302	242							29	68
GICL13	112	2300	140,150	252	202	480	420	320	476	364	7	54	57	40	10.08	10.06	416
			160,170,180	302	242							32	70
			190,200	352	282							32	80
GICL14	160	2100	160,170,180	302	242	520	465	360	532	415	8	42	70	40	11.15	16.774	594
GICL14	160	2100	190,200,220	352	282	520	465	360	532	415	8	32	80	40	11.15	16.774	594
GICL15	224	1900	190,200,220	352	282	580	510	400	556	429	10	34	80	40	11.36	26.55	783
GICL15	224	1900	240,250	410	330	580	510	400	556	429	10	38	一	40	11.36	26.55	783
GICL16	355	1600	200,220	352	282	680	595	465	640	501	10	58	80	50	13.3	52.22	1134
			240,250,260	410	330							38	一
			280	470	380							38	一
GICL17	400	1500	220	352	282	720	645	495	672	512	10	74	80	50	13.87	69	1305
			240,250,260	410	330							39	一
			280,300	470	380							39	一
GICL18	500	1400	240,250,260	410	330	775	675	520	702	524	10	46	一	50	14.53	96.16	1626
GICL18	500	1400	280,300,320	470	380	775	675	520	702	524	10	41	一	50	14.53	96.16	1626
GICL19	630	1300	260	410	330	815	715	560	744	560	10	67	一	50	15.71	115.6	1773
			280,300,320	470	380							41
			340	550	450							41
GICL20	710	1200	280,300,320	470	380	855	755	585	786	595	13	44	一	50	16.49	167.41	2263
GICL20	710	1200	340,360	550	450	855	755	585	786	595	13	44	一	50	16.49	167.41	2263
GICL21	900	1100	300,320	470	380	915	795	620	808	611	13	59	一	50	17.02	215.7	2593
GICL21	900	1100	340,360,380	550	450	915	795	620	808	611	13	44	一	50	17.02	215.7	2593
GICL22	950	950	340,360,380	550	450	960	840	665	830	632	13	44	一	60	17.28	278.07	3036
GICL22	950	950	400	650	540	960	840	665	830	632	13	44	一	60	17.28	278.07	3036
GICL23	1120	900	360,380	550	450	1010	890	710	870	666	13	44	一	60	18.06	379.4	3668
GICL23	1120	900	400,420	650	540	1010	890	710	870	666	13	48	一	60	18.06	379.4	3668
GICL24	1250	875	380	550	450	1050	925	730	890	685	15	46	一	60	18.6	448.1	3964
GICL24	1250	875	400,420,450	650	540	1050	925	730	890	685	15	50	一	60	18.6	448.1	3964
GICL25	1400	850	400,420,450,480	650	540	1120	970	770	930	724	15	50	一	60	19.4	564.64	4443
GICL26	1600	825	420,450,480,500	650	540	1160	990	800	950	733	15	50	一	60	19.9	637.4	4791
GICL27	1800	800	450,480,500	650	540	1210	1060	850	958	739	15	50	一	70	19.92	866.26	5758
GICL27	1800	800	530	800	680	1210	1060	850	958	739	15	50	一	70	19.92	866.26	5758
GICL28	2000	770	480,500	650	540	1250	1080	890	1034	805	20	55	一	70	21.2	1020.76	6232
GICL28	2000	770	530,560	800	680	1250	1080	890	1034	805	20	55	一	70	21.2	1020.76	6232
GICL29	2800	725	500	650	540	1340	1200	960	1034	792	20	57	一	80	21.1	1450.84	7549
GICL29	2800	725	530,560,600	800	680	1340	1200	960	1034	792	20	55	一	80	21.1	1450.84	7549
GICL30	3200	700	560,600,630	800	680	1390	1240	1005	1050	806	20	55	一	80	21.7	1947.17	9541
