WJA Drum Coupling

Menowa is a wja drum coupling supplier from china, wholesale and direct sales wja drum coupling at a reasonable price.

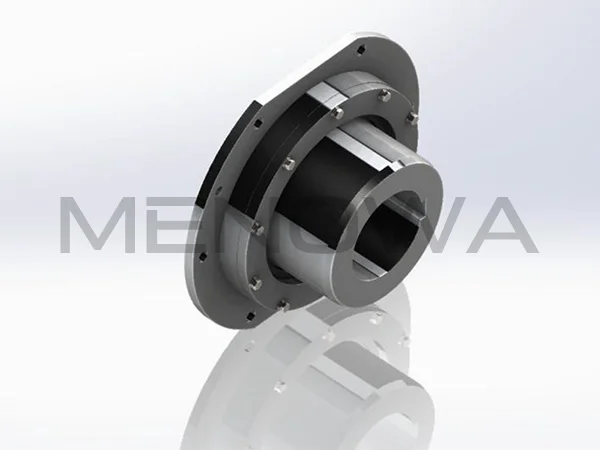

WJA drum coupling serves as a key connecting component in industrial power transmission systems, playing a vital role in linking adjacent rotating shafts and transferring stable torque during equipment operation. Its special structural design enables flexible adaptation to slight axial, radial and angular misalignment that commonly occurs in mechanical operation, effectively easing mechanical friction and buffering operational vibration generated during equipment startup and steady running. This mechanical part features even stress distribution on contact surfaces, which reduces local wear and avoids unnecessary mechanical impact on connected equipment. It fits well with heavy-load and low-speed working scenarios widely adopted in metallurgy, mining and material handling industries. The simple and compact structure brings convenience for daily inspection, disassembly and routine upkeep, maintaining steady and continuous operation of various mechanical transmission systems for long-term industrial production processes.

Model	Nominal Torque Tn kN·m	Allowable Radial Force kN	d	L	D	D₁	D₂	D₃	nxd₁	s	l₁	l₂	l₃	r	c	Wear Scale m1	Rotational Inertia kg·m²	Quality kg
Model	Nominal Torque Tn kN·m	Allowable Radial Force kN	H7	L	D	D₁	h6	D₃	nxd₁	h9	l₁	l₂	l₃	r	c	Wear Scale m1	Rotational Inertia kg·m²	Quality kg
WJA1	5	16.5	40,42,45,48	84	250	220	160	85	10xΦ14	220	42	12	24	2	1.6	4	0.065	12.8
WJA1	5	16.5	50,55	84	250	220	160	85	10xΦ14	220	42	12	24	2	1.6	4	0.065	12.8
WJA2	7.1	18.5	45,48,50,55	84	280	250	180	90	10xΦ14	250	42	12	24	2.5	1.6	4	0.102	16.1
WJA2	7.1	18.5	60	107	280	250	180	90	10xΦ14	250	42	12	24	2.5	2	4	0.102	15.9
WJA3	9	20	48,50,55	84	320	280	200	95	10xΦ18	280	45	15	25	2.5	1.6	4	0.193	21.9
WJA3	9	20	60,65	107	320	280	200	95	10xΦ18	280	45	15	25	2.5	2	4	0.193	21.8
WJA4	14	25	60,65,70,75	107	340	300	220	130	10xΦ18	300	45	15	25	2.5	2	4	0.278	29.8
WJA4	14	25	80,85	132	340	300	220	130	10xΦ18	300	45	15	25	2.5	2	4	0.278	29.5
WJA5	18	35	60,65	107	360	320	240	150	10xΦ18	320	45	15	25	2.5	2	6	0.369	35
WJA5	18	35	80,85,90,95	132	360	320	240	150	10xΦ18	320	45	15	25	2.5	2.5	6	0.369	36.5
WJA6	22.4	38.5	80,85,90,95	132	380	340	260	160	10xΦ18	340	45	15	25	3	2.5	6	0.496	43.3
WJA6	22.4	38.5	100,110	167	380	340	260	160	10xΦ18	340	45	15	25	3	2.5	6	0.496	43.7
WJA7	28	42	80,85,90,95	132	400	360	280	170	10xΦ18	360	47	15	33	3	2.5	6	0.654	53
WJA7	28	42	100,110,120	167	400	360	280	170	10xΦ18	360	47	15	33	3	2.5	6	0.654	52
WJA8	35.5	49	100,110,120	167	420	380	310	200	10xΦ18	380	47	15	33	3	2.5	6	0.95	69
WJA8	35.5	49	130,140	202	420	380	310	200	10xΦ18	380	47	15	33	3	3	6	0.95	67
WJA9	50	70	100,110,120	167	450	400	340	230	10xΦ22	400	52	20	28	3	2.5	6	1.45	89
WJA9	50	70	130,140,150	202	450	400	340	230	10xΦ22	400	52	20	28	3	3	6	1.45	88.5
WJA10	100	120	130,140,150	202	550	500	420	280	10xΦ22	500	60	20	28	3	3	8	3.81	156
WJA10	100	120	160,170,180	242	550	500	420	280	10xΦ22	500	60	20	28	3	3	8	3.81	151
WJA11	160	140	160,170,180	242	580	530	450	300	14xΦ22	530	60	20	28	3	3	8	4.932	184
WJA11	160	140	190,200	282	580	530	450	300	14xΦ22	530	60	20	28	3	4	8	4.932	181
WJA12	224	170	190,200,220	282	650	600	530	360	14xΦ22	580	65	25	33	3	4	8	9.09	267
WJA12	224	170	240,250	330	650	600	530	360	14xΦ22	580	65	25	33	3	4	8	9.09	247
WJA13	255	300	200,220	282	680	630	560	400	26xΦ22	600	65	25	35	4	4	8	12.1	319
WJA13	255	300	240,250,260	330	680	630	560	400	26xΦ22	600	65	25	35	4	4	8	12.1	311
WJA14	500	340	240,250,260	330	710	660	600	440	26xΦ26	640	82	35	43	4	4	8	18.2	4.3
WJA14	500	340	280,300	380	710	660	600	440	26xΦ26	640	82	35	43	4	5	8	18.2	394
WJA15	630	380	240,250,260	330	780	730	670	500	26xΦ26	700	82	35	43	4	4	8	29.4	544
WJA15	630	380	280,300,320	380	780	730	670	500	26xΦ26	700	82	35	43	4	5	8	29.4	560
WJA16	710	450	280,300,320	380	850	800	730	550	26xΦ26	760	82	35	43	4	5	8	44	693
WJA16	710	450	340,360,380	450	850	800	730	550	26xΦ26	760	82	35	43	4	6	8	44	664
